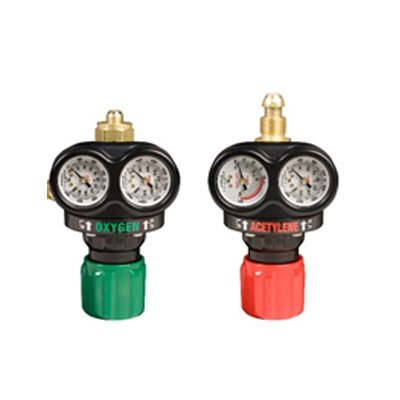

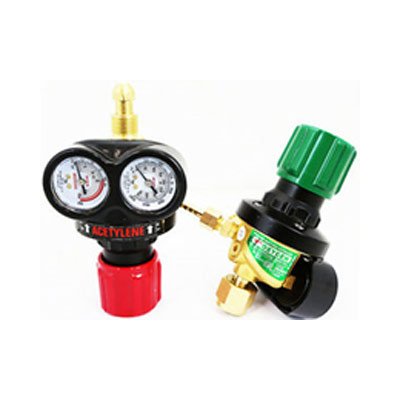

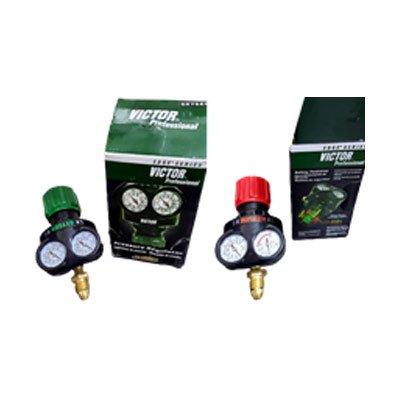

Victor Oxygen & Acetylene Regulators
Brand: VICTOR
Model: ESS4
Top Features:
• Heavy duty, high capacity, single stage design regulator
• Outstanding flow performance provides better flow control across a full range of cylinder pressures, with exceptional sensitivity and precision in delivery pressure • EDGE- regulators offer easy to read gauges with enhanced graphics
• Color-coded knobs for quick gas identification • Safer hand/body positioning for adjusting delivery pressure • The most compact industrial regulators available on the market
• Forged brass body, stainless steel bolts
• Zinc-aluminum alloy housing cap – nearly twice the yield strength of brass
• More consistent flow performance over a wide range of cylinder pressures.
• Regulators meet or exceed industry standards
• Features SLAMT (Shock Limitation and Absorption Mechanism) technology built into the adjusting knob
• Passes all CGA E-4 compliance testing, Heated Oxygen Impact Test, and requirements of the UL 252 Standard for Compressed Gas Regulators
• ESS4 regulators provide high capacity
• Forged brass body
Specifications:
• Zinc-Aluminum housing cap
• High impact ABS gauge guard
• Stem type seat mechanism
• External self reseating relief valve in high pressure models
• Sintered inlet filter — nickel plated bronze
• Color-coded SLAM impact absorbing safety knob
• Meets or exceeds CGA E-4, UL 252 and ASTM G-175 Promoted Ignition Test
• Ideal for use in industrial and general fabrication, light fabrication, repair, maintenance, structural steel fabrication, and more
• Manufacturer Model#: ESS4-15-300 / 0781-5133
• CGA Inlet: 300
• CGA Outlet: CGA 033 (5/8″ – 18 F LH)
• Inlet Position: Side
• Max Delivery Pressure: 15 psig
• Dimensions: 4″H x 4″L x 6″W
• Weight: 4 lb.
Impa No: 850193
